Vinyl Astragal Kit

	Description	Qty
	6'8" includes Header, Sill Plate Kit, Flush Bolts and Security Strike Plate Note: Specify sill type (self draining inswing or standard inswing) (standard outswing or bumper outswing) and handling (L.H. or R.H.) when ordering.	Each Kit

	Description	Qty
	6'8" includes Header, Sill Plate Kit, Flush Bolts and Security Strike Plate Note: Specify sill type (self draining inswing or standard inswing) (standard outswing or bumper outswing) and handling (L.H. or R.H.) when ordering.	Each Kit

Bill Of Material

Description	Qty
Vinyl astragal - R.H, L.H.	1
#8 × 3/4” P.H. screws — zinc plated	8
Top cap — R.H., L.H	1
Flushbolt	2
Strike plate	1
#8 × 1-3/4” F.H. screw — brass plated	4
Bottom cap — R.H., L.H.	1
Astragal cap	2
Corner Seal — Lockside	2
Weatherstripping (supplied separately)	1
Strike adjustment bracket	1

Astragal Sill Plate Assembly

Description	Self Draining & Standard Outswing Req’d Qty	Standard Inswing Req’d Qty
Vinyl astragal assembly	1	1
Pile seal — R.H., L.H	1	1
#9 × 1-1/4” F.H. screw — zinc plated	2	1
#9 × 3/4” F.H. screw — zinc plated	0	1
Sill plate — R.H., L.H	1	1
Sill assembly	1	1

Astragal Sill Plate Kit

Profile	Description	Qty
See Below	Astragal Sill Plate Kit (Specify sill type and handing when ordering).	Each

Solid White Foam PVC Astragal

Description	Qty
Double Door Astragal - 84"	Pc
Double Door Astragal - 96"	Pc
Patio Door/ Garden Door Astragal - 79"	Pc

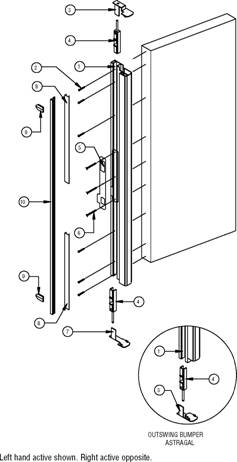

Assembly Note

Assemble astragal to door.

Insert flushbolts, top and bottom caps into astragal.

Assemble strike plate and, if necessary, strike
adjustment bracket.

Snap astragal cap onto astragal.

Assemble weatherstripping into astragal.

Position corner seal to top and bottom oif astragal.

Astragal Sill Plate Assembly
